8kW 3-phase On-grid inverter with dual MPPT trackers for optimal solar harvest, high durability, and robust safety compliance for medium-scale rooftop projects.

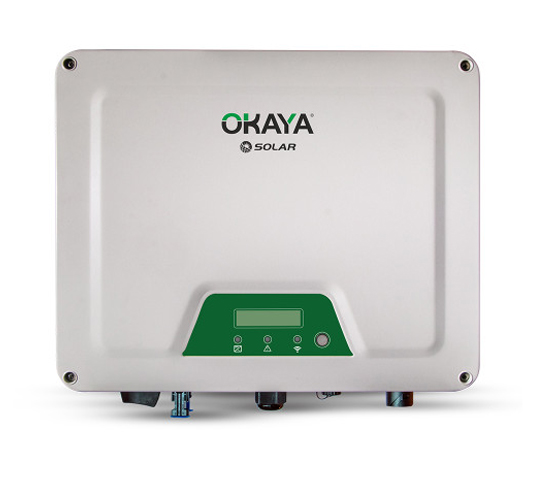

SOLAR GTI 8KW P3
| Capacity 8kW |
Warranty 120 Months |
Technology MPPT |
|---|
The Okaya Solar GTI 8kW P3 delivers powerful solar integration with a peak DC input of 9.6kW, dual MPPT trackers, and a 150–1000V MPPT voltage range. With 98% maximum conversion efficiency and integrated anti-islanding protection, it ensures stable and reliable performance. The inverter features natural convection/smart fan cooling, wide operating temperatures (-25°C to +60°C), and IP65-rated protection for outdoor durability. A user-friendly LED display provides instant system status updates. Certified to BIS and IEC standards, it’s designed for long-term performance with a 10-year warranty.
- • Up to 98% Efficiency - Generates more energy from the same sunlight maximizing ROI.
- • Wide MPPT Voltage Range - Starts efficiently even in low sunlight or varied weather.
- • 120% DC Input Overload & 1100V DC Input Support - Enables greater panel input flexibility and longer string designs.
- • Smart String-Level Monitoring - Tracks the performance of individual strings for faster diagnostics.
- • Fanless Natural Cooling Design - Silent operation makes it perfect for noise-sensitive environments.
- • Dual MPPT Technology - Ideal for installations with different orientations or shading.
- • Rated AC output power: 8 kW (three-phase)
- • Max. peak DC input power: 9.6 kW
- • Max. DC input voltage: 1000 V
- • MPPT architecture: 2 MPPT trackers (strings per MPPT: 1)
- • MPPT tracking voltage range: 150 – 1000 V
- • Min. start voltage: 150 / 180 V
- • Max. MPPT input current: 13 A
- • MPPT short-circuit current: 20 A
- • Rated grid voltage: 380 / 400 / 415 V (operating window 300 V – 500 V)
- • Max. AC output current: 11.56 A
- • AC connection: 3P + N + E (plug-in connector)
- • Max. conversion efficiency: 98%
- • Protections integrated: anti-islanding, insulation resistance detection, residual current monitoring, over-voltage protection, surge protection
- • DC switch: Optional
- • Cooling: Natural convection + smart fan cooling for stable operation
- • Communication & monitoring: Wi-Fi / GPRS / RS-485 (for remote monitoring)
- • DC connection type: MC-4
- • Display: LED with LCD display for local status and diagnostics
- • Noise emission: < 30 dB (quiet operation)
- • Protection class / Outdoor rating: IP65 (dust-tight, water-resistant)
- • Operating ambient temperature: −25 °C to +60 °C
- • Relative humidity: 0% – 100%
- • Max. operating altitude: 2000 m (derating above 2000 m)
- • Night standby power consumption: < 1 W
- • Dimensions (W×H×D): 425 × 351 × 160 mm
- • Weight: 13.7 kg (±200 g)
- • Standard warranty: 10 years
- • Certifications: BIS; IEC 62109-1/2; IEC 61727; IEC 61683; IEC 60068; IEC 62116; IEC 61000 EMC
